Elmo TT-12iD Interactive Document Camera with CP-EW302N Projector Bundle - MFR # 1349-82
Elmo TT-12iD Interactive Document Camera with CP-EW302N Projector Bundle MFR # 1349-82
Elmo 1349-82 Overview

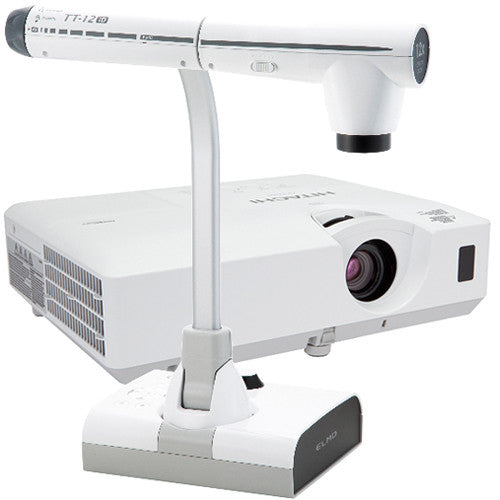

The Elmo 1349-82 Bundle includes the TT-12iD Interactive Document Camera and CP-EW302N 3000-Lumen WXGA 3-LCD Projector.

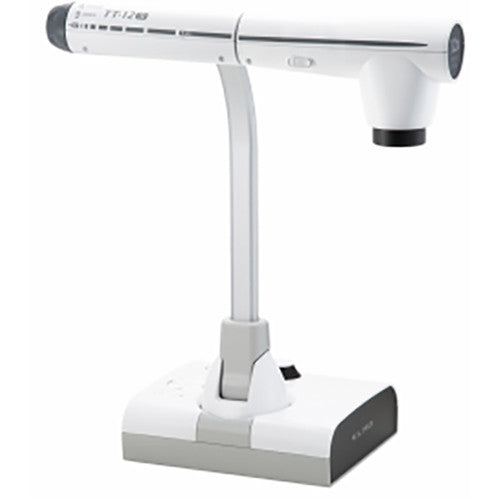

TT-12iD Interactive Document Camera
Create interactive lessons with the ELMO TT-12iD Interactive Document Camera by combining hard-copy documentation along with digital slideshows or videos. The TT-12iD has a high-definition integrated camera for examining books, documents, or other teaching models with the 16.5 x 9.1" maximum viewing area. 1080p and 720p HD resolutions as well as SXGA, WXGA, and XGA VESA resolutions are supported at 30 frames-per-second (fps). The camera lens has a built-in 12x optical zoom and autofocus capabilities to ensure a sharp and consistent image with proper coverage while the 8x digital zoom can be used to further concentrate on details when the optical zoom is insufficient.

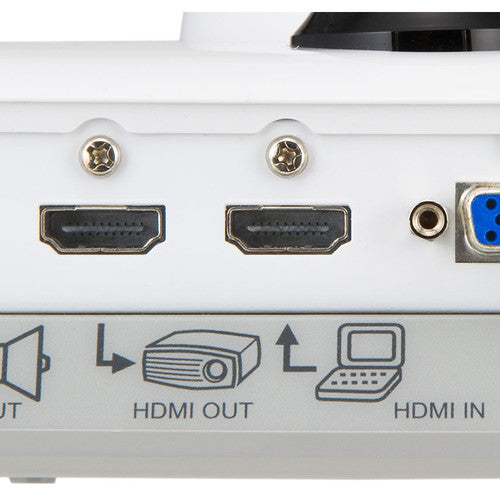

Using the HDMI or VGA outputs, the TT-12iD can connect to an overhead projector or other A/V display equipment. If the presentation space has sound reinforcement, the built-in microphone or the 3.5mm audio input can be used to enhance the presenter's voice or incorporate pre-recorded audio. Separate analog audio output via a 3.5mm terminal is offered when the VGA output is utilized. HDMI and VGA inputs are also available for plugging in a laptop or other video source to complement the lesson. Sources can be easily switched using the buttons on the included wireless remote control.

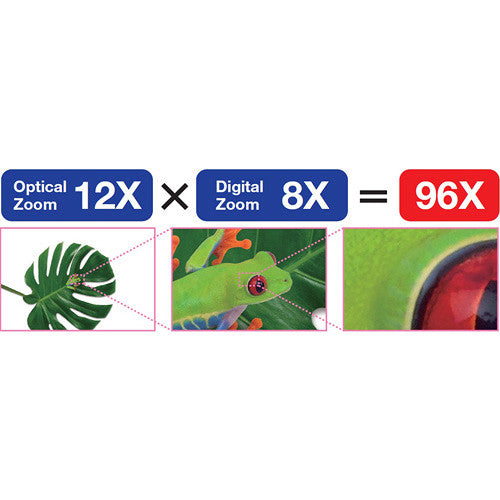

96x Zoom and 3.4-Megapixel CMOS Image Sensor
When the TT-12iD's high magnification 12x optical zoom is combined with its 8x digital zoom, images can be enlarged up to 96 times while maintaining detail. The TT-12iD's megapixel image sensor captures everything from fine text to three-dimensional objects in 1080p full HD.

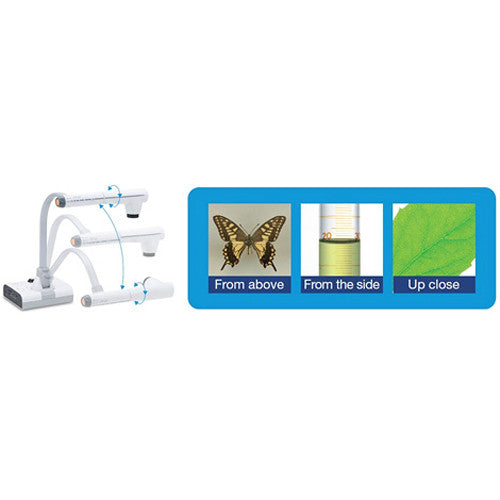

Adjustable Free-Angle Camera Head & Arm
Adjustable camera head and arm can be raised, lowered, and rotated to focus viewers' attention where you want it.

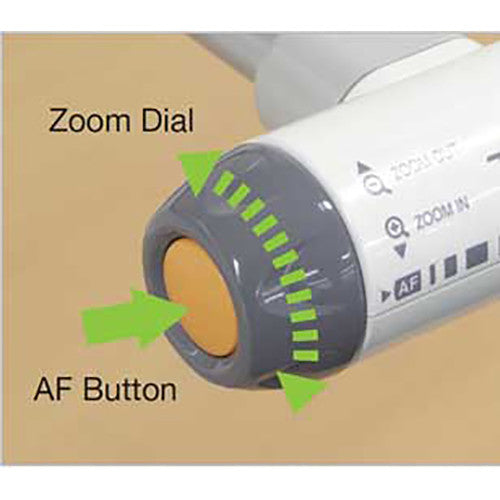

Zoom Dial & One Push AF Button
Zoom dial allows fine zoom adjustments. The Auto Focus (AF) button enables easy one-touch auto focusing.

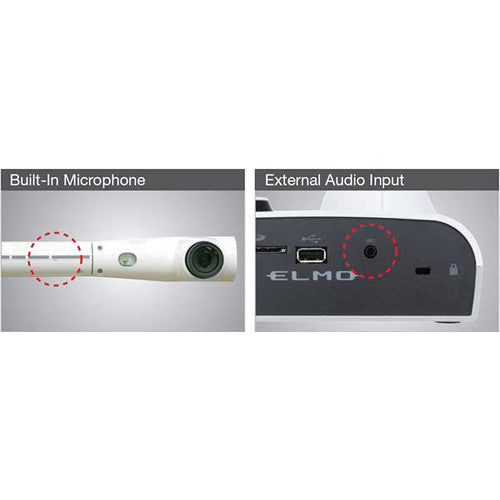

Audio Input & Output
Audio enhancement can be added to classroom presentations via the built-in microphone or an external microphone input (Mic In/Line In). The audio can be routed to the external HDMI or Audio Line Out port.

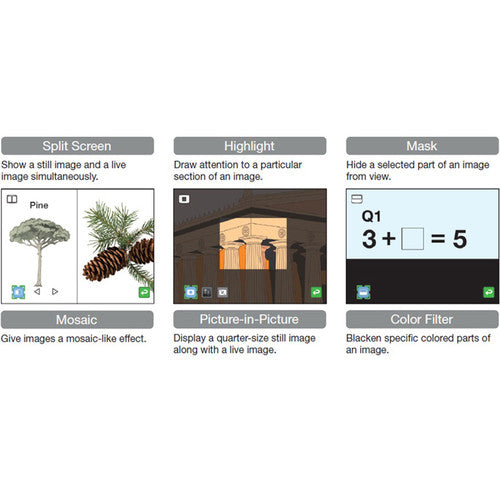

Presentation Support Tools
The ergonomically designed wireless remote control brings convenient functions to classroom presentations, including the capability to highlight or mask selected parts of an image. With the Split Screen function, a still image and a live image can be displayed simultaneously, while the Picture-in-Picture function allows a quarter-size still image to be shown along with a live image.

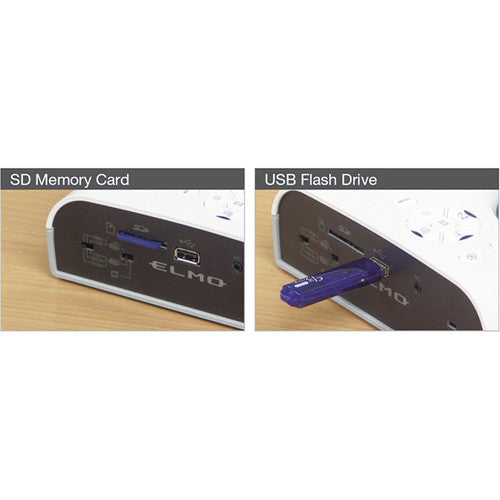

Save Classroom Presentations on External Memory
Both still images (jpg) and audio video files (mp4) can be saved on a USB flash drive or SD memory card for future use. Files may also be saved to a PC or Mac using Image Mate Software (included).

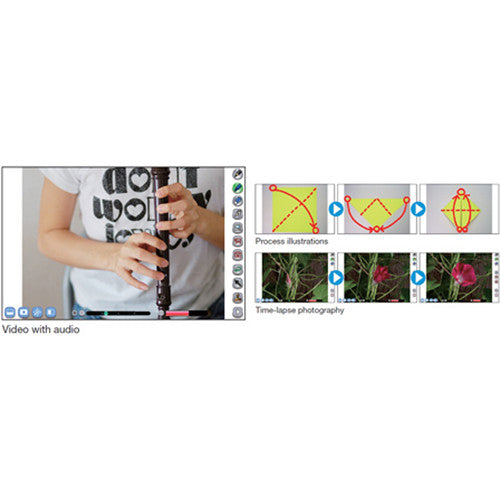

Record Lessons and Upload on the Server for Absent Students
Video with audio, time-lapse photography, and still images saved on a computer can all be used for review with the whole class as well as for absent students.

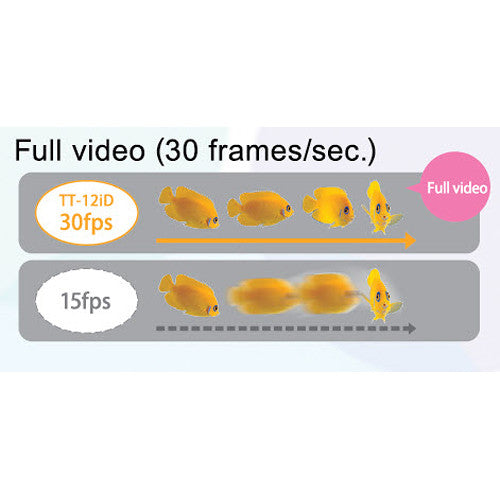

Smooth Moving Images at 30 fps
Captures and reproduces moving images at 30 fps for the display of truly smooth, natural looking motion.
Functions
- White Balance: Auto / One-Push / Manual
- Image Modes: Text1 / Text2 / Text3 / Graphics1 / Graphics2
- Edge enhancement (only for graphics mode)
- Pause
- Still image storage
- Movie storage
- USB image output (ELMO original, UVC [USB Video Class])
- Gamma setting (only for graphics mode)
- Graphical OSD
- Slide show (image data)
- State presetting (up to three user settings)
- Annotation (CRA-1 use)
- Auto/Manual brightness control (auto with level adjustment)
- Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Color filter, Microscope, Image rotation (0º/180º), Positive/negative conversion, Color/B&W selection
UPC: 008404103969

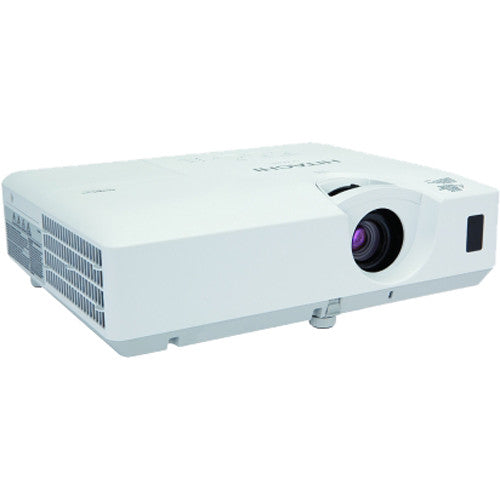

CP-EW302N 3000-Lumen WXGA 3LCD Projector
Present in rooms with ambient light with the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector. It features 3000 lumens of color and white brightness to overcome ambient light in many situations, and its 1280 x 800 WXGA resolution will help keep images and text clear at most viewing distances.
HDMI, VGA, and composite video inputs help ensure compatibility with a multitude of source types. The second VGA input can alternately be used as an output to daisy-chain multiple projectors or displays. A built-in 16W speaker eliminates the need for an external sound system, though you can use one with the analog audio inputs and output. The projector is controllable via Ethernet, RS-232, or the included IR remote control.
ImageCare Technology
ImageCare is a lamp power control function that combines picture performance with energy savings by decreasing energy usage, enhancing contrast ratio, and lengthening lamp life. The result is a lower total cost of ownership and reduced maintenance costs.
Intelligent Eco and Saver Modes
These modes automatically change the brightness of the lamp according to the brightness level of the screen. They also automatically change the brightness of the lamp if there is no change in the screen image.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number, or location.
Network Control, Maintenance, and Security
Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
UPC: 050585155442
In the Box (Bundle Items)
- TT-12iD Interactive Document Camera
- AC Adapter
- Power Cable
- USB Cable
- Image Mate CD-ROM
- IR Wireless Remote Control
- AAA Battery
- Limited 5-Year Warranty
- CP-EW302N 3000-Lumen WXGA 3LCD Projector
- Remote Control
- 2 x AA Batteries
- Computer Cable
- Power Cord
- Limited 3-Year Warranty
-
TT-12iD Interactive Document Camera
Sensor Sensor 1/2.8" CMOS Sensor Resolution 3.4 MP Zoom 12x (Optical)
8x (Digital)Aperture f/3.2 Frame Rate 30 fps Effective Pixels 1920 x 1536 Output Resolution 1920 x 1080 Adjustments Focal Length 4 to 48 mm Convenience Focus Modes Auto, Manual, Zoom Electrical Power Consumption 16.2 W DC Input Power 12 VDC Physical Kensington Lock Slot Yes Dimensions 14.0 x 14.7 x 16.2" / 355.0 x 373.5 x 426.5 mm (In-Use)
7.7 x 11.6 x 18.4" / 195.0 x 294.0 x 469.0 mm (Folded)Weight 7.1 lb / 3.2 kg Packaging Info Box Dimensions (LxWxH) 21.4 x 13.9 x 10.2" -
CP-EW302N 3000-Lumen WXGA 3LCD Projector
Lens Focus Manual Optical Zoom Manual: 1.2x Throw Distance 35 - 453" / 88.9 - 1150.62 cm Throw Ratio 1.5 - 1.8:1 Projection Size 300.00 - 3000.00" / 762.00 - 7620.00 mm Features Keystone Correction Vertical: ± 30° Built-In Speaker Yes Speaker Power 16W Packaging Info Box Dimensions (LxWxH) 14.8 x 12.4 x 6.45"
